YYH series one-dimensional motion mixer

YYH series one-dimensional motion mixer is generally used in pharmaceutical, chemical, food, light industry, electronics, machinery, national defense industry and various scientific research units of powder, granular materials with high uniformity mixing. A simple and efficient powder mixer, simple structure, easy cleaning, is in line with the "GMP" powder mixing equipment.

Category: Hybrid Equipment Series

Inquiry Contact

Description

Product Introduction

Uses and features

This machine is widely used in medicine, chemical industry, food, dye, feed, fertilizer, pesticide and other industries in the powder, granule mixing.

Simple structure and convenient operation.

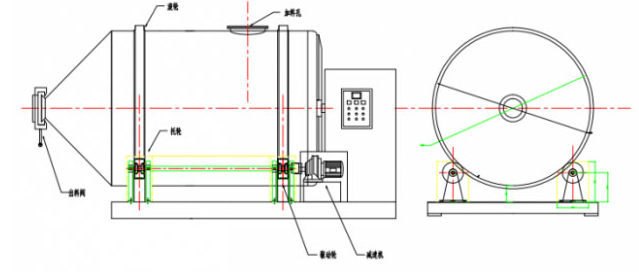

During operation, the charging cylinder rotates around the central axis (referred to as "one-dimensional movement"), while the material in the cylinder moves in three dimensions, so the mixing accuracy of the material can be comparable to that of two-dimensional and three-dimensional motion mixers.

Technical parameters

Product Model	Bucket volume (L)	Maximum loading volume (L)	Max. charge weight (Kg)	Rotation speed (r/min)	Motor power (kw)	Overall dimension (mm) (length x width x height x direct)
YYH-600	600	300	150	0-13	1.5	1615 × 960 × 1100 × 630
YYH-800	800	400	200	0-12	2.2	1730 × 1070 × 1200 × 700
YYH-1000	1000	500	250	0-12	2.2	1900 × 1120 × 1300 × 710
YYH-1500	1500	750	375	0-12	3	2050 × 1300 × 1480 × 830
YYH-2000	2000	1000	500	0-10	4	2280 × 1420 × 1620 × 910
YYH-3000	3000	1500	750	0-10	5.5	2505 × 1620 × 1830 × 1020
YYH-4000	4000	2000	1000	0-8	5.5	3000 × 1800 × 2200 × 1300
YYH-6000	6000	3000	1500	0-6	7.5	3400 × 2200 × 2500 × 1450
YYH-8000	8000	4000	2000	0-6	11	3677 × 2300 × 2850 × 1630
YYH-10000	10000	5000	2500	0-6	11	3800 × 2500 × 2950 × 1680
YYH-12000	12000	6000	3000	0-6	15	4600 × 2700 × 3050 × 1700
YYH-15000	15000	7500	3750	0-5	18.5	4730 × 2900 × 3100 × 1725
YYH-20000	20000	10000	5000	0-5	22	6000 × 3200 × 3500 × 1920
