High salt wastewater dryer series

Drum scraper dryer is a kind of internal heat conduction type rotating continuous drying equipment. The rotating drum adheres to a certain thickness of material film through its lower trough. The heat is transported to the inner wall of the drum through the pipeline and conducted to the outer wall of the drum to indirectly heat the material film, so that the humidity in the material film is evaporated and dehumidified, thus the material containing moisture is dried. The dried material is shoveled away from the drum by the scraper installed on the surface of the drum, and then to the screw conveyor placed under the scraper, through which the dry material is concentrated and packaged. Suitable for chemical, dye, pharmaceutical, food, metallurgy, yeast and other industries liquid work more viscous material drying. Widely used in: rice flour, oatmeal, starch, potato flour and other food products dried into flake, powder and granular.

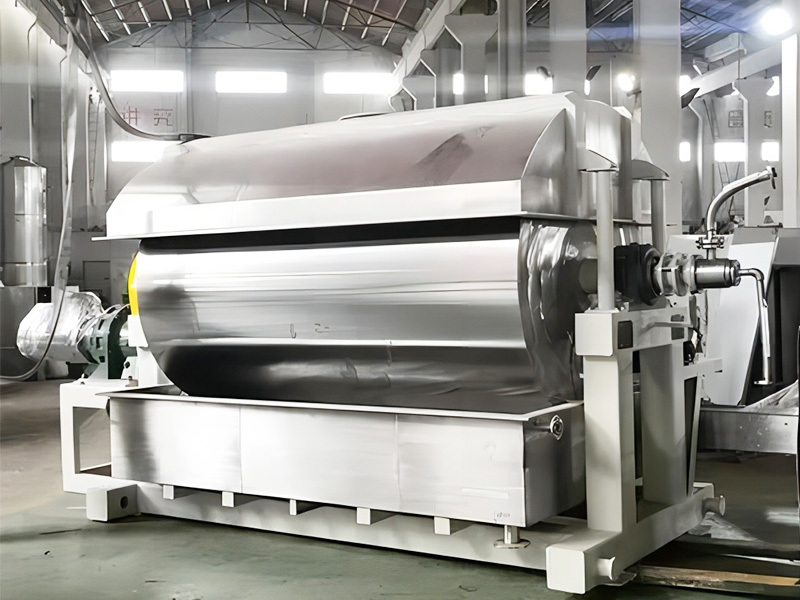

HG type drum scraper dryer
